DPDT general purpose electromechanical relay featuring 8A contact current rating and 30VDC contact voltage rating. Coil specifications include 5VDC coil voltage, 80mA coil current, and 400mW coil power. Through-hole mounting with straight terminals, this relay operates within a -40°C to 85°C temperature range and offers 8ms operate time and 6ms release time. Approvals include CSA, VDE, and cULus, with RoHS compliance.
PackageDIP
Current Rating8A
MountingSocket
Power400mW
Quick Jump:
Technical Specifications
TE Connectivity RTE24005F technical specifications.
General
Application(s)
GENERAL PURPOSE
Approvals
CSA, VDE, cULus
Package/Case
DIP
Coil Current
80mA
Coil Power
500mW
Coil Resistance
62R
Coil Type
Non-Latching
Coil Voltage (AC)
5V
Coil Voltage (DC)
5V
Contact Current Rating
8A
Contact Material
Silver, Agni90/10
Contact Voltage Rating (AC)
250V
Current Rating
8A
Depth
12.7mm
Dropout Voltage
500mV
ELV
Compliant
Height
15.7mm
Lead Free
Lead Free
Length
1.142inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
400V
Mount
Socket
Operate Time
8ms
Package Quantity
20
Packaging
Carton
Power Consumption
400mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
6ms
RoHS Compliant
Yes
Series
RT2
Termination
Plug
Throw Configuration
DPDT
Voltage Rating (AC)
400V
DC Rated Voltage
5V
Weight
13g
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity RTE24005F Datasheet
Download the complete datasheet for TE Connectivity RTE24005F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

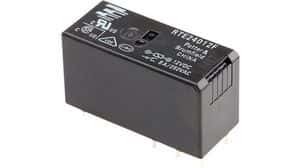

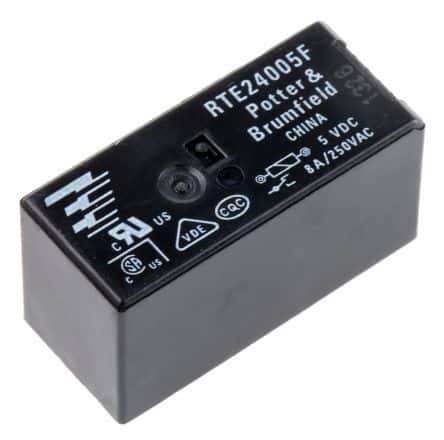

Product Images
