General purpose electromechanical relay featuring a Single Pole Single Throw (SPST) contact configuration. Coil operates at 12VDC with 220mW power consumption and 19.2mA current. Contact rating is 8A at 250VAC, with silver contact material. Mounts via PCB termination and offers a 9ms operate time and 5ms release time.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity RYA31012 technical specifications.
General
Application(s)
POWER
Coil Current
19.2mA
Coil Power
300mW
Coil Resistance
627R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
8A
Contact Material
Silver
Contact Voltage Rating (AC)
250V
Depth
10.1mm
Dropout Voltage
1.2V
ELV
Compliant
Height
0.484inch
Length
1.122inch
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
400V
Mount
Through Hole, PCB
Operate Time
9ms
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
RY, SCHRACK
Termination
PCB
Throw Configuration
SPST
Weight
0.282oz
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity RYA31012 Datasheet
Download the complete datasheet for TE Connectivity RYA31012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

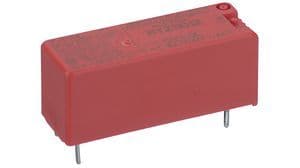

Product Images
