General purpose DPST momentary electromechanical relay featuring a 12VDC coil with 139.5mA current and 1.5W power consumption. Contacts rated for 30A at 28VDC and 277VAC, with a maximum AC voltage rating of 600V. Panel mount design with screw termination, operating within a temperature range of -55°C to 85°C. RoHS compliant with a 25ms operate time and 15ms release time.
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity T92P7D52-12 technical specifications.
General
Coil Current
139.5mA
Coil Power
1.5W
Coil Resistance
86R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
30A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
277V
Depth
34.54mm
Height
1.039inch
Length
2.051inch
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Panel
Operate Time
25ms
Packaging
Carton
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
15ms
RoHS Compliant
Yes
Series
T92
Termination
Screw
Throw Configuration
DPST
Weight
3.034oz
Width
34.5mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity T92P7D52-12 Datasheet
Download the complete datasheet for TE Connectivity T92P7D52-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

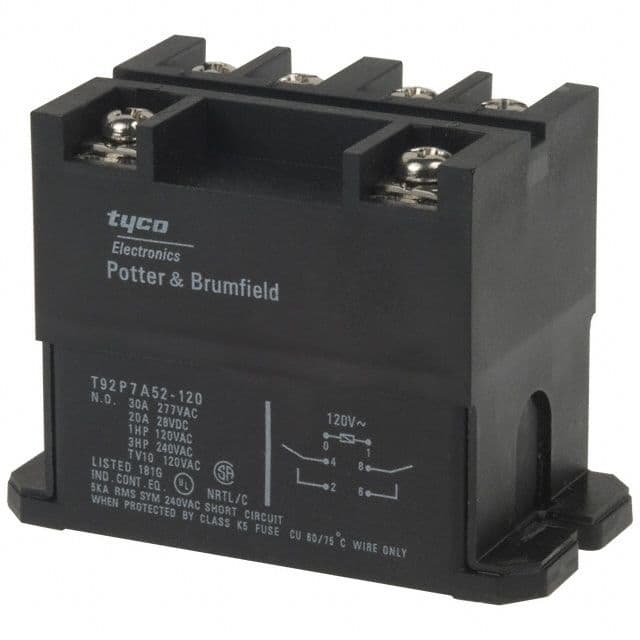

Product Images
