DPST-NO power relay with a 12VDC coil voltage and 1.5W coil power, featuring a 30A contact current rating at 277VAC and a maximum AC voltage rating of 600V. This general-purpose relay offers silver/cadmium contact material, quick connect termination, and panel mounting with a flange. Approvals include UL, CSA, and VDE, with a RoHS compliant status. Operating temperature range is -55°C to 85°C, and it includes 15ms operate and release times.
Package120
Current Rating30A
MountingPanel
Power1.7W
Quick Jump:
Technical Specifications
TE Connectivity T92S7D22-12 technical specifications.
General
Application(s)
POWER
Approvals
UL, CSA, VDE
Package/Case
120
Coil Current
139.5mA
Coil Power
1.5W
Coil Resistance
86R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
30A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
277V
Current Rating
30A
Depth
34.54mm
ELV
Non-Compliant
Height
1.209inch
Lead Free
Lead Free
Length
2.059inch
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Panel
Operate Time
15ms
Packaging
Bulk
Power Consumption
1.7W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
15ms
RoHS Compliant
Yes
Series
T92
Termination
Quick Connect
Throw Configuration
DPST
Voltage Rating (AC)
600V
Weight
3.034oz
Width
34.5mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity T92S7D22-12 Datasheet
Download the complete datasheet for TE Connectivity T92S7D22-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

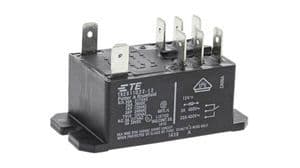

Product Images
