High-power wirewound resistor, 1 Ohm resistance with 5% tolerance, rated for 2.5kW maximum power dissipation. Features a radial package with solder terminations, designed for chassis mounting via brackets. Operates within a temperature range of -25°C to 225°C and has a voltage rating of 2.5kV. This RoHS compliant component offers a ±440ppm/°C temperature coefficient.
PackageRadial
Resistance1R
Voltage Rating2.5kV
MountingBrackets
Quick Jump:
Technical Specifications
TE Connectivity TE2500B1R0J technical specifications.
General
Package/Case
Radial
Diameter
60mm
ELV
Compliant
Lead Free
Lead Free
Lead/Base Style
Solder
Length
600mm
Max Operating Temperature
225°C
Min Operating Temperature
-25°C
Max Power Dissipation
2.5kW
Mount
Brackets
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
2.5kV
Package Quantity
6
Packaging
Loose Piece
Reach SVHC Compliant
Unknown
Resistance
1R
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
TE
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
2.5kV
Width
650mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity TE2500B1R0J Datasheet
Download the complete datasheet for TE Connectivity TE2500B1R0J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

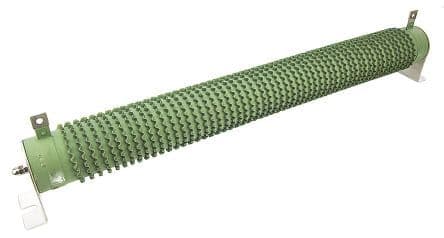

Product Images
