Resistance2.2R
Voltage Rating265V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity THS152R2J technical specifications.
General
| Height | 11mm |
| Lead/Base Style | Fixed |
| Length | 21mm |
| Max Operating Temperature | 275°C |
| Min Operating Temperature | -55°C |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| Resistance | 2.2R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | No |
| Series | THS |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 265V |
| DC Rated Voltage | 265V |
| Width | 21mm |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity THS152R2J Datasheet
Download the complete datasheet for TE Connectivity THS152R2J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

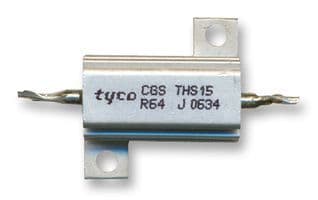

Product Images
