TE Connectivity
THS50R22J
RESISTOR, WIRE WOUND, 50W, 5%, 50ppm, 0.22ohm, CHASSIS MOUNT, ROHS COMPLIANT
Resistance220mR
Voltage Rating1.25kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity THS50R22J technical specifications.
General
ELV
Compliant
Height
17mm
Lead Length
10mm
Lead/Base Style
Fixed
Length
51mm
Max Operating Temperature
275°C
Min Operating Temperature
-55°C
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Package Quantity
100
Packaging
Tray
Reach SVHC Compliant
Unknown
Resistance
220mR
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
THS
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
1.25kV
Width
30mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity THS50R22J Datasheet
Download the complete datasheet for TE Connectivity THS50R22J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

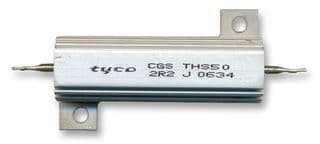

Product Images
