TE Connectivity
TL3AR015FTDG
RESISTOR, CURRENT SENSE, METAL FOIL, 1W, 1%, 75ppm, 0.015ohm, SURFACE MOUNT, 2512, CHIP, ROHS COMPLIANT
Package2512
Resistance15mR
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity TL3AR015FTDG technical specifications.
General
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| ELV | Compliant |
| Height | 0.6mm |
| Length | 6.4mm |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Resistance | 15mR |
| RoHS Compliant | Yes |
| Series | TL, CGS |
| Technology | THIN FILM |
| Termination | Solder |
| Tolerance | 1% |
| Weight | 0.001429oz |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity TL3AR015FTDG Datasheet
Download the complete datasheet for TE Connectivity TL3AR015FTDG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

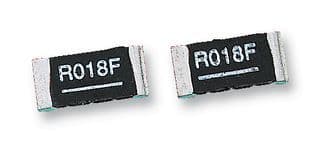

Product Images
