TE Connectivity
TLR3A20DR01FTDG
TE CONNECTIVITY - TLR3A20DR01FTDG - Strommesswiderstand, Oberflächenmontage, 0.01 ohm, Baureihe TLR, 2512 [Metrisch 6432], 2 W, ± 1%
Package2512
Resistance10mR
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity TLR3A20DR01FTDG technical specifications.
General
Case Code (Imperial)
2512
Case Code (Metric)
6432
Package/Case
2512
Depth
3.2mm
ELV
Compliant
Height
0.6mm
Length
6.4mm
Max Operating Temperature
170°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Mount
Surface Mount
Number of Resistors
1
Number of Terminations
2
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
10mR
Resistance Tolerance
1%
Resistor Type
Metal Strip, Metal Film
RoHS Compliant
Yes
Series
TLR, CGS
Technology
METAL STRIP
Termination
Solder
Tolerance
1%
Compliance
RoHS
Compliant
Datasheet
TE Connectivity TLR3A20DR01FTDG Datasheet
Download the complete datasheet for TE Connectivity TLR3A20DR01FTDG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

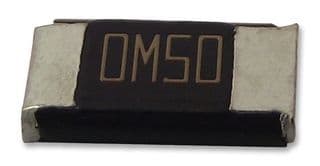

Product Images
