Technical Specifications
TE Connectivity TW1103KA technical specifications.
General
| Depth | 22.6mm |
| Length | 42.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Panel |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 10% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | TW |
| Taper | Linear |
| Termination | Eyelet |
| Tolerance | 10% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity TW1103KA Datasheet
Download the complete datasheet for TE Connectivity TW1103KA to view detailed technical specifications.
No datasheet is available for this part.

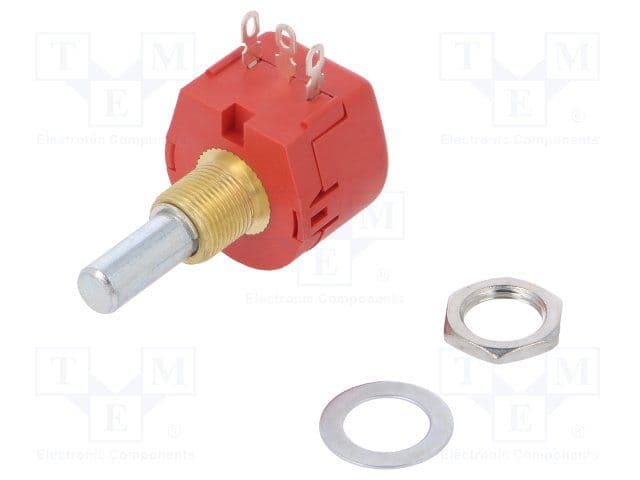

Product Images
