Wirewound fixed resistor, 10kΩ resistance with 0.1% tolerance and 5ppm TCR. Features 250mW power dissipation, 300V DC rated voltage, and operates from -55°C to 145°C. Axial leaded, through-hole mount design with tin plated contacts. RoHS compliant.
PackageAxial
Resistance10kR
Voltage Rating300V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity UPW25B10KV technical specifications.
General
Package/Case
Axial
Contact Plating
Tin
Diameter
4.75mm
ELV
Compliant
Lead Length
25mm
Length
9.53mm
Max Operating Temperature
145°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
300V
Package Quantity
100
Packaging
Loose Piece
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
0.1%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
UPW, Neohm
Technology
WIRE WOUND
Termination
Axial
Tolerance
0.1%
Voltage Rating
300V
DC Rated Voltage
300V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity UPW25B10KV Datasheet
Download the complete datasheet for TE Connectivity UPW25B10KV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

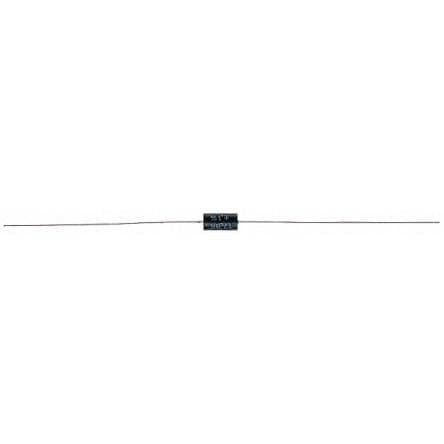

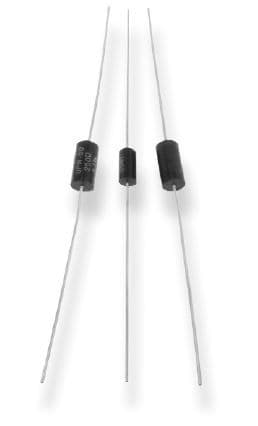

Product Images
