Wirewound fixed resistor with 10 ohm resistance and 0.1% tolerance. Features axial leaded, through-hole mounting with a 500mW power dissipation. Operating temperature range from -55°C to 145°C, with a 400V DC rated voltage. Axial package dimensions include a 6.35mm diameter and 12.7mm length. RoHS compliant.
PackageAxial
Resistance10R
Voltage Rating400V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity UPW50B10RV technical specifications.
General
Package/Case
Axial
Diameter
6.35mm
ELV
Compliant
Lead Free
Lead Free
Lead Length
25mm
Length
12.7mm
Max Operating Temperature
145°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
400V
Packaging
Loose Piece
Reach SVHC Compliant
No
Resistance
10R
Resistance Tolerance
0.1%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
UPW, Neohm
Technology
WIRE WOUND
Termination
Axial
Tolerance
0.1%
Voltage Rating
400V
DC Rated Voltage
400V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity UPW50B10RV Datasheet
Download the complete datasheet for TE Connectivity UPW50B10RV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

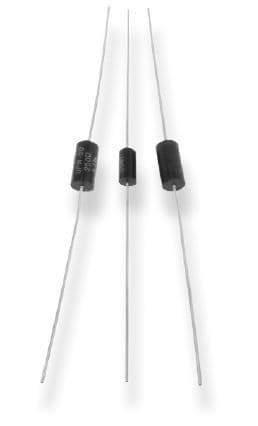

Product Images
