Wirewound fixed resistor, 0.5W power rating, 50 ohm resistance with 0.1% tolerance. Features axial mounting, 25mm lead length, and 6.35mm diameter. Operates across a -55°C to 145°C temperature range with a 400V voltage rating. RoHS compliant, tin contact plating, and packaged in loose pieces.
PackageAxial
Resistance50R
Voltage Rating400V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity UPW50B50RV technical specifications.
General
Package/Case
Axial
Contact Plating
Tin
Diameter
6.35mm
ELV
Compliant
Lead Length
25mm
Length
12.7mm
Max Operating Temperature
145°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
400V
Package Quantity
100
Packaging
Loose Piece
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50R
Resistance Tolerance
0.1%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
UPW, Neohm
Technology
WIRE WOUND
Termination
Axial
Tolerance
0.1%
Voltage Rating
400V
DC Rated Voltage
400V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity UPW50B50RV Datasheet
Download the complete datasheet for TE Connectivity UPW50B50RV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

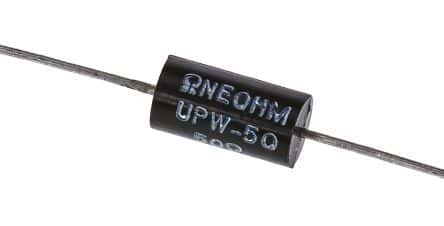

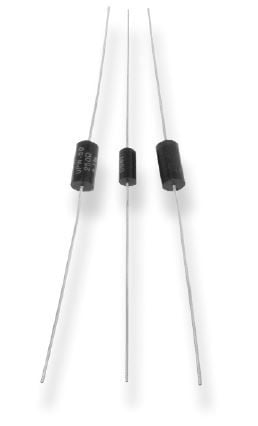

Product Images
