Single-pole thermal circuit breaker rated for 50A, featuring a push-pull actuator and screw termination. This panel-mount breaker operates at 250VAC/50VDC, with a maximum operating temperature of 60°C and a minimum of -20°C. It is UL approved, RoHS compliant, and lead-free, designed for general circuit protection applications.
Voltage Rating250V
Current Rating50A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W23-X1A1G-50 technical specifications.
General
| Actuator Type | Push-Pull |
| Approvals | UL |
| Breaker Type | Thermal |
| Current Rating | 50A |
| ELV | Non-Compliant |
| Height | 35.15mm |
| Lead Free | Lead Free |
| Length | 40.64mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Panel |
| Number of Poles | 1 |
| Operating Supply Voltage | 250V |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | W23 |
| Termination | Screw |
| Time to Trip | 30s |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 50V |
| Weight | 2.010616oz |
| Width | 17.53mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity W23-X1A1G-50 Datasheet
Download the complete datasheet for TE Connectivity W23-X1A1G-50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

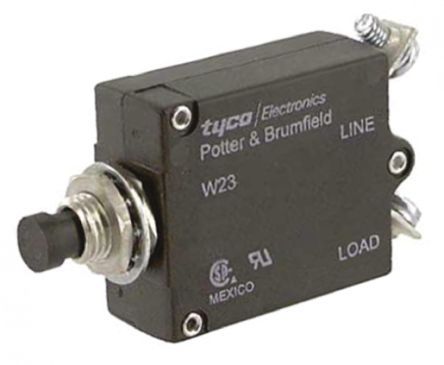

Product Images
