Thermal circuit breaker, 1-pole, 5A current rating, 250VAC/32VDC voltage rating. Features push-to-reset actuator, quick connect termination, and panel mount design. Operates within a temperature range of -20°C to 60°C. RoHS compliant and UL approved.
Voltage Rating250V
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W28-XQ1A-5 technical specifications.
General
Actuator Type
Push to Reset
Approvals
UL
Breaker Type
Thermal
Current Rating
5A
Height
19.31mm
Lead Free
Lead Free
Length
38.99mm
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
Panel
Number of Poles
1
Panel Thickness
1.57mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
W28
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
32V
Weight
0.35274oz
Width
19.31mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity W28-XQ1A-5 Datasheet
Download the complete datasheet for TE Connectivity W28-XQ1A-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

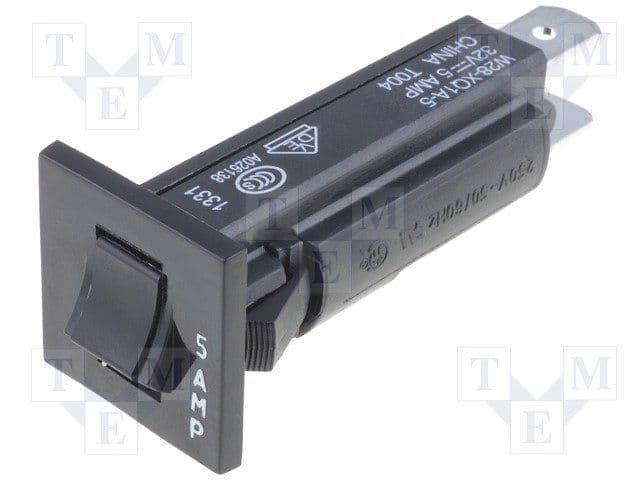

Product Images
