1-pole thermal circuit breaker with a 2A current rating, suitable for 250VAC and 50VDC applications. Features a push-pull actuator, screw termination, and panel mount design. Operates within a temperature range of -20°C to 60°C. RoHS compliant and UL approved.
Voltage Rating240V
Current Rating2A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W31-X2M1G-2 technical specifications.
General
Actuator Type
Push-Pull
Approvals
UL
Breaker Type
Thermal
Color
Black
Current Rating
2A
ELV
Non-Compliant
Height
35.15mm
Lead Free
Not Applicable
Length
40.64mm
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
Panel
Number of Poles
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
W31
Termination
Screw
Time to Trip
30s
Voltage Rating
240V
Voltage Rating (AC)
240V
DC Rated Voltage
50V
Weight
2.010616oz
Width
17.53mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity W31-X2M1G-2 Datasheet
Download the complete datasheet for TE Connectivity W31-X2M1G-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

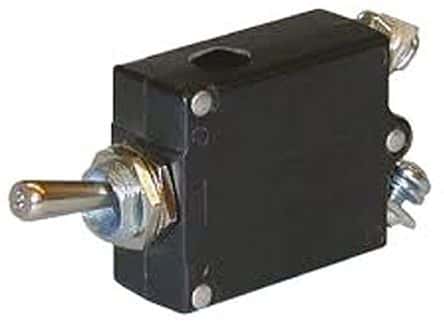

Product Images
