1-pole thermal circuit breaker, 30A, 250VAC/50VDC, featuring a push-to-reset actuator and quick connect termination. This panel-mount breaker operates within a temperature range of -20°C to 60°C and is RoHS compliant. Designed for series trip circuit function, it meets UL approvals and is lead-free.
Voltage Rating250V
Current Rating30A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity W58-XB1A4A-30 technical specifications.
General
Actuator Type
Push to Reset
Approvals
UL
Breaker Type
Thermal
Circuit Function
SERIES TRIP
Color
White
Current Rating
30A
ELV
Non-Compliant
Height
34.93mm
Lead Free
Lead Free
Length
34.93mm
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Mount
Panel
Number of Poles
1
Operating Supply Voltage
250V
Package Quantity
100
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
W58
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
50V
Weight
1.499143oz
Width
16.76mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity W58-XB1A4A-30 Datasheet
Download the complete datasheet for TE Connectivity W58-XB1A4A-30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

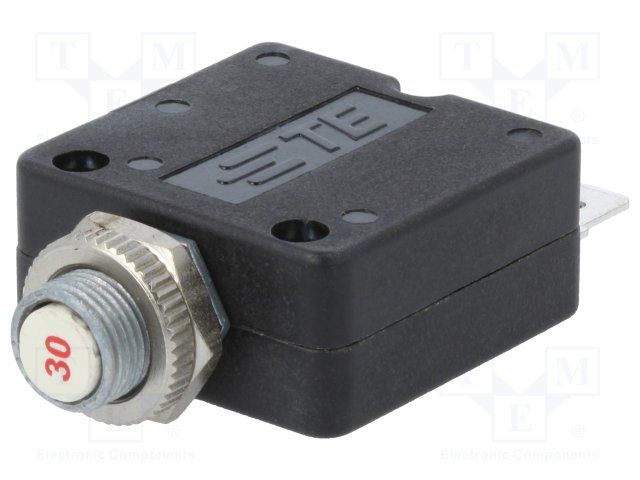

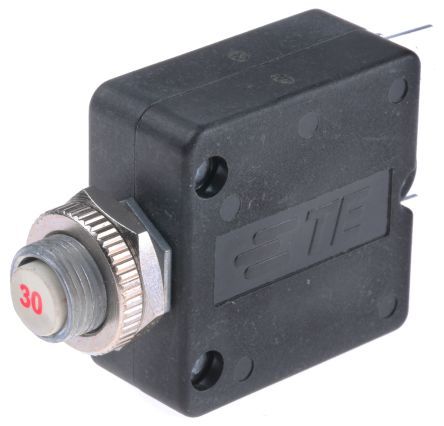

Product Images
