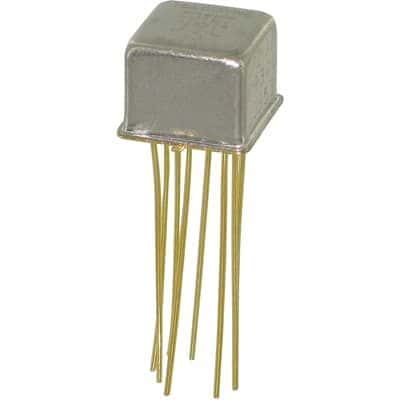

DPDT RF relay, designed for general-purpose applications, featuring a 1A contact current rating at 28VDC. Operates with a 5VDC coil voltage, consuming 405mW of power, and a coil current of 78.13mA. Offers a 1GHz frequency range with 0.5dB insertion loss and 0.4pF capacitance. Packaged in a TO-5 case with through-hole PCB mounting and solder termination.
Frequency1GHz
PackageTO-5
Capacitance0.4pF
Current Rating1A
Quick Jump:
Technical Specifications
Teledyne 172-5 technical specifications.
General
Capacitance
0.4pF
Package/Case
TO-5
Coil Current
78.13mA
Coil Power
405mW
Coil Resistance
64R
Coil Voltage (DC)
5V
Contact Current Rating
1A
Contact Material
Gold, Metal
Current Rating
1A
Depth
8.51mm
Frequency
1GHz
Height
7.11mm
Insertion Loss
0.5dB
Lead Length
19mm
Length
8.51mm
Life (Hours)
10000000Hour
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
28V
Mount
Through Hole, PCB
Packaging
Bulk
Power Consumption
405mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
RoHS Compliant
No
Series
172
Termination
Solder
Throw Configuration
DPDT
DC Rated Voltage
28V
Compliance
RoHS
Not CompliantNo
Datasheet
Teledyne 172-5 Datasheet
Download the complete datasheet for Teledyne 172-5 to view detailed technical specifications.
