Teledyne
GRF172-12
Electromechanical Relay 12VDC 400Ohm 1A DPDT(9.531x10.421x8.38)mm SMD Centigrid RF Relay
Frequency2.5GHz
Current Rating1A
MountingPCB, Surface Mount
Power360mW
Quick Jump:
Technical Specifications
Teledyne GRF172-12 technical specifications.
General
| Coil Current | 30mA |
| Coil Power | 360mW |
| Coil Resistance | 400R |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Metal |
| Current Rating | 1A |
| Frequency | 2.5GHz |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 28V |
| Mount | PCB, Surface Mount |
| Power Consumption | 360mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | GRF172 |
| Termination | SMD/SMT |
| Throw Configuration | DPDT |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Not Compliant |
Datasheet
Teledyne GRF172-12 Datasheet
Download the complete datasheet for Teledyne GRF172-12 to view detailed technical specifications.
No datasheet is available for this part.

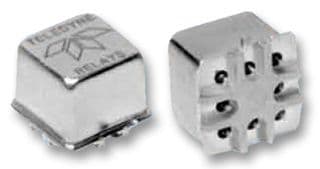

Product Images
