Texas Instruments
5962-9686001Q2A

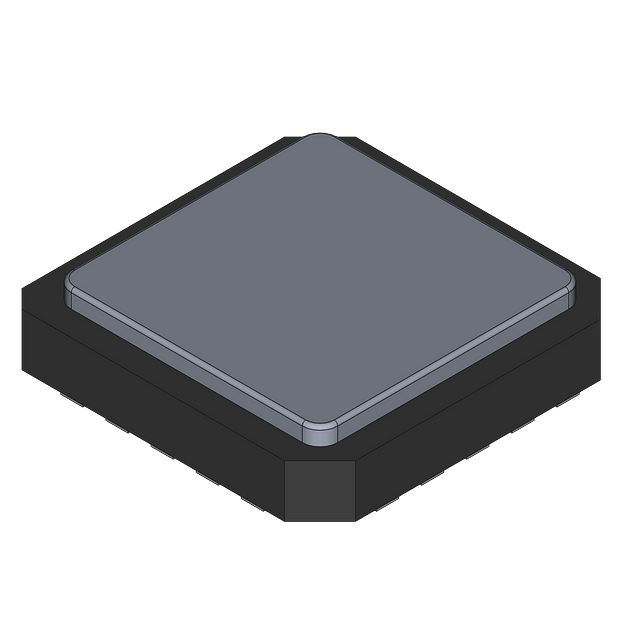

Dual Positive-Edge-Triggered D-type Flip-Flops With Clear And Preset 20-LCCC -55 to 125
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments 5962-9686001Q2A technical specifications.
General
Clock Edge Trigger Type
Positive Edge
High Level Output Current
-8mA
Lead Free
Contains Lead
Length
8.89mm
Logic Function
D-Type
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
2
Number of Elements
2
Number of Outputs
4
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
18ns
Quiescent Current
2uA
RoHS Compliant
No
Technology
CMOS
Thickness
1.83mm
Width
8.89mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments 5962-9686001Q2A Datasheet
Download the complete datasheet for Texas Instruments 5962-9686001Q2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
