18-bit universal bus transceiver featuring 3-state outputs, designed for bidirectional data flow. This surface-mount device operates from a 4.5V to 5.5V supply, with a typical 5V operating voltage. It offers 24mA high and low level output current, a 5.6ns propagation delay, and a 6ns turn-on delay. Packaged in a 56-SSOP with gold contact plating, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments 74FCT162501ATPVCT technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
Direction
Bidirectional
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
Transceiver
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
18
Number of Circuits
1
Number of Elements
1
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
5.6ns
Quiescent Current
500uA
RoHS Compliant
Yes
Series
74FCT
Technology
CMOS
Turn-On Delay Time
6ns
Weight
0.024508oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments 74FCT162501ATPVCT Datasheet
Download the complete datasheet for Texas Instruments 74FCT162501ATPVCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

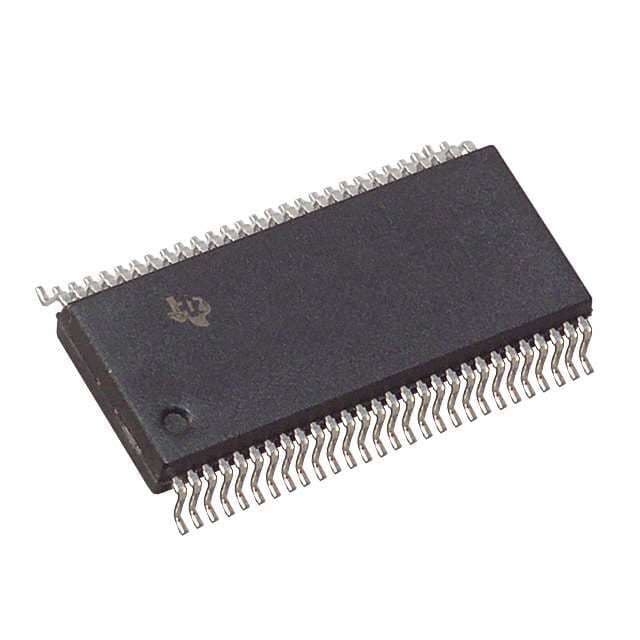

Product Images
