16-bit bus transceiver and register with 3-state outputs, featuring 2 circuits, each with 8 bits per element. Operates from a 4.5V to 5.5V supply voltage, with a typical operating voltage of 5V. Offers 24mA high and low level output current, and a propagation delay of 6.3ns. Packaged in a 56-TSSOP with gold contact plating, suitable for surface mounting. This RoHS compliant component operates across a temperature range of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments 74FCT162646ATPACT technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Gold |
| High Level Output Current | 24mA |
| Lead Free | Contains Lead |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Bits per Element | 8 |
| Number of Channels | 16 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 6.3ns |
| Quiescent Current | 5uA |
| RoHS Compliant | Yes |
| Series | 74FCT |
| Technology | CMOS |
| Turn-On Delay Time | 9.8ns |
| Weight | 0.008917oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments 74FCT162646ATPACT Datasheet
Download the complete datasheet for Texas Instruments 74FCT162646ATPACT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

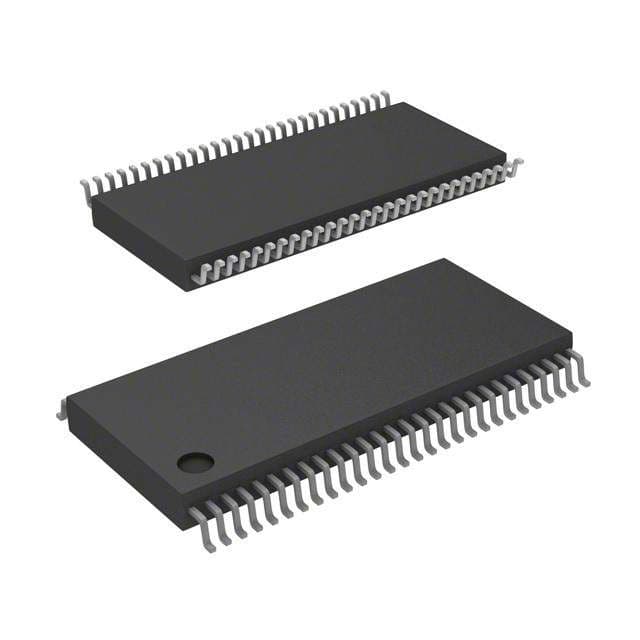

Product Images
