8-bit Analog-to-Digital Converter (ADC) with an 8-channel multiplexer, offering a 10 kS/s conversion rate. This unipolar, single-ended input device features a parallel interface and operates from a 4.5V to 6V supply voltage, with a typical operating voltage of 5V. Packaged in a 28-pin PLCC for surface mounting, it has a maximum power dissipation of 875mW and an operating temperature range of -40°C to 85°C.
PackagePLCC
MountingSurface Mount
PolarityUnipolar
Power1.5mW
Quick Jump:
Technical Specifications
Texas Instruments ADC0809CCV technical specifications.
General
Package/Case
PLCC
Conversion Rate
10KS/s
Input Type
SINGLE-ENDED
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
875mW
Max Supply Voltage
6V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
8
Number of Channels
8
Number of Converters
1
Number of Elements
1
Number of Inputs
8
Operating Supply Voltage
5V
Package Quantity
35
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
1.5mW
Power Dissipation
875mW
Radiation Hardening
No
Resolution
8b
RoHS Compliant
No
Sampling Rate
10KS/s
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments ADC0809CCV Datasheet
Download the complete datasheet for Texas Instruments ADC0809CCV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

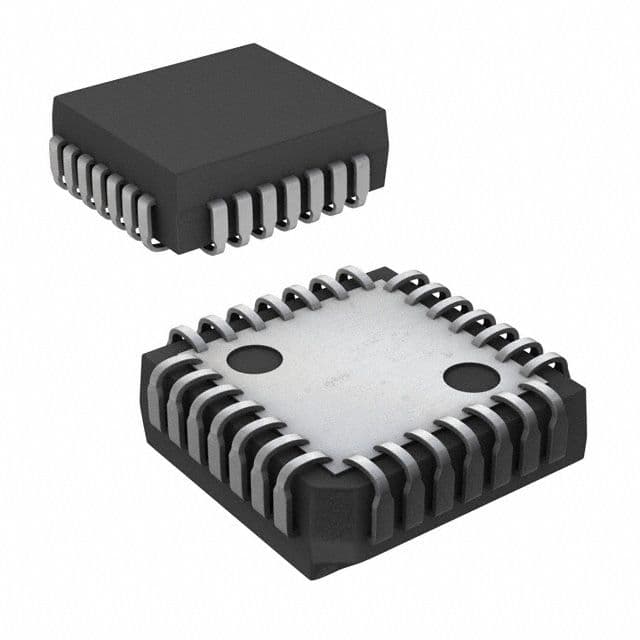

Product Images
