8-bit, 200MS/s analog-to-digital converter (ADC) featuring a single-ended input and parallel interface. This surface-mount component offers a 47dB signal-to-noise ratio and operates with a 2.7V to 3.6V supply voltage. The device boasts an integral nonlinearity of -1.2LSB and a maximum power dissipation of 21mW. Packaged in a 24-TSSOP, it supports a temperature range of -40°C to 85°C.
PackageTSSOP
Current70mA
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Texas Instruments ADC08200CIMT technical specifications.
General
Package/Case
TSSOP
Conversion Rate
200000KS/s
Height
1.2mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
-1.2LSB
Interface
Parallel
Lead Free
Contains Lead
Length
7.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
21mW
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
3V
Package Quantity
61
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
210mW
Power Dissipation
21mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
No
Sampling Rate
200MS/s
Signal to Noise Ratio (SNR)
47dB
Supply Current
70mA
Termination
SMD/SMT
Thickness
1mm
Width
4.4mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments ADC08200CIMT Datasheet
Download the complete datasheet for Texas Instruments ADC08200CIMT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

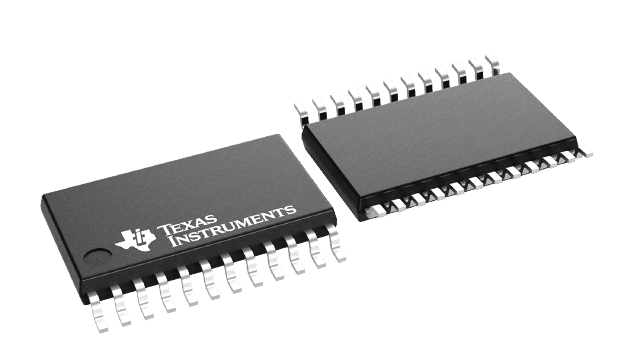

Product Images
