10-bit, 2-channel successive approximation analog-to-digital converter (ADC) with a serial SPI interface. Features a 200 kS/s sampling rate, single-ended input, and unipolar polarity. Operates from a single 5V supply with a maximum power dissipation of 9.5mW. Packaged in an MSOP-8 for surface mounting.
PackageMSOP
MountingSurface Mount
PolarityUnipolar
Power1.94mW
Quick Jump:
Technical Specifications
Texas Instruments ADC102S021CIMM technical specifications.
General
Package/Case
MSOP
Conversion Rate
200KS/s
Input Type
SINGLE-ENDED
Interface
SPI, Serial, 4-WIRE
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
9.5mW
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
2
Number of Bits
10
Number of Channels
2
Number of Converters
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
1.94mW
Radiation Hardening
No
Resolution
10b
RoHS Compliant
No
Sampling Rate
200KS/s
Signal to Noise Ratio (SNR)
61.8dB
Supply Type
Single
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments ADC102S021CIMM Datasheet
Download the complete datasheet for Texas Instruments ADC102S021CIMM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

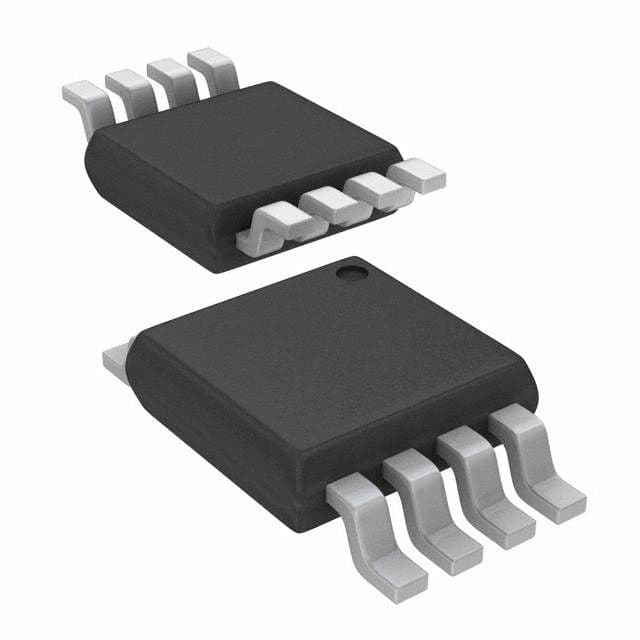

Product Images
