8-Bit Analog-to-Digital Converter (ADC) with a 20MSPS conversion rate. Features single-ended input, parallel interface, and unipolar polarity. Offers 1LSB differential nonlinearity and 1.3LSB integral nonlinearity. Operates with a 5V supply voltage and a temperature range of -20°C to 75°C. Packaged in a 24-TSSOP for surface mounting.
PackageTSSOP
MountingSurface Mount
PolarityUnipolar
Power60mW
Quick Jump:
Technical Specifications
Texas Instruments ADC1175CIMTCX/NOPB technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Conversion Rate
20000KS/s
Differential Nonlinearity
1LSB
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1.3LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
75°C
Min Operating Temperature
-20°C
Max Power Dissipation
60mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
60mW
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
20000000S/s
Signal to Noise Ratio (SNR)
47.6dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADC1175CIMTCX/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC1175CIMTCX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

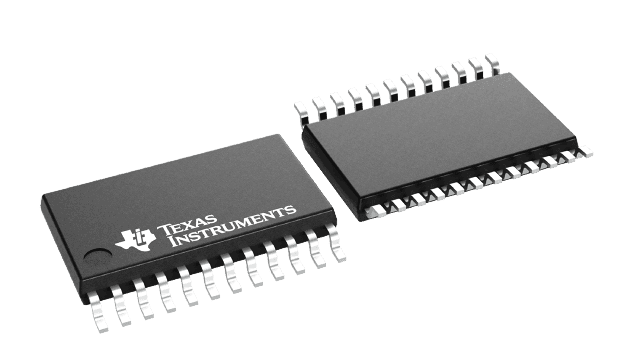

Product Images
