12-bit, 8-channel analog-to-digital converter (ADC) with a sampling rate up to 200 kS/s. Features SPI serial interface, 1LSB integral nonlinearity, and 2LSB full-scale error. Operates from a 2.7V to 5.25V supply voltage, with a typical power consumption of 1.2mW. Packaged in a 16-TSSOP with tin contact plating, suitable for surface mounting. Extended operating temperature range from -40°C to 105°C.
PackageTSSOP
Voltage5V
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Texas Instruments ADC128S022CIMT/NOPB technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin
Converter Type
GENERAL PURPOSE
Differential Nonlinearity
-0.7LSB
Full Scale Error
2LSB
Height
0.9mm
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
12
Number of Converters
1
Number of Elements
1
Number of Inputs
8
Operating Supply Voltage
3.3V
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
1.2mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
200KS/s
Signal to Noise Ratio (SNR)
73dB
Supply Type
Analog, Digital
Thickness
1mm
Voltage
5V
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADC128S022CIMT/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC128S022CIMT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

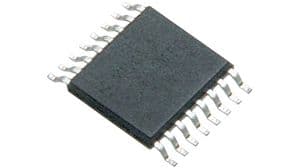

Product Images
