Automotive 12-bit Analog-to-Digital Converter (ADC) featuring 8 single-ended analog inputs and a serial SPI interface. Achieves a sampling rate of up to 500 kSPS with a full-scale error of 2 LSB and integral nonlinearity of 1 LSB. Operates across a wide temperature range of -40°C to 125°C with a supply voltage from 2.7V to 5.25V. Packaged in a 16-TSSOP with tin, matte contact plating, this RoHS compliant component offers a signal-to-noise ratio of 73dB and spurious-free dynamic range of 92dB.
PackageTSSOP
PolarityUnipolar
Power1.6mW
Quick Jump:
Technical Specifications
Texas Instruments ADC128S052QCMT/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 500KS/s |
| Full Scale Error | 2LSB |
| Height | 1.05mm |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 8.7mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 8 |
| Number of Bits | 12 |
| Number of Channels | 8 |
| Number of Converters | 1 |
| Number of Inputs | 8 |
| Package Quantity | 92 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Consumption | 1.6mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 500KS/s |
| Signal to Noise Ratio (SNR) | 73dB |
| Spurious-free dynamic range (SFDR) | 92dB |
| Supply Type | Analog, Digital |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC128S052QCMT/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC128S052QCMT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

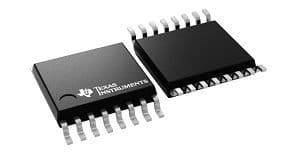

Product Images
