16-bit, 1-channel delta-sigma Analog-to-Digital Converter (ADC) with a conversion rate of 128 S/s. Features differential input, I2C interface, and precision amplifier type. Operates with a supply voltage range of 2.7V to 5.5V and a supply current of 240µA. Packaged in a 6-pin SOT-23 with gold contact plating, suitable for SMD/SMT termination. RoHS compliant with a maximum power dissipation of 1.75mW.
PackageSOT-23
Current240uA
PolarityBipolar, Unipolar
Power1.2mW
Quick Jump:
Technical Specifications
Texas Instruments ADS1110A0IDBVT technical specifications.
General
Amplifier Type
PRECISION
Package/Case
SOT-23
Contact Plating
Gold
Conversion Rate
128S/s
Differential Nonlinearity
1LSB
Height
1.15mm
Input Type
DIFFERENTIAL
Interface
I2C
Lead Free
Lead Free
Length
2.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.75mW
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Bipolar, Unipolar
Power Dissipation
1.2mW
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
240S/s
Supply Current
240uA
Supply Type
Single
Termination
SMD/SMT
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS1110A0IDBVT Datasheet
Download the complete datasheet for Texas Instruments ADS1110A0IDBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

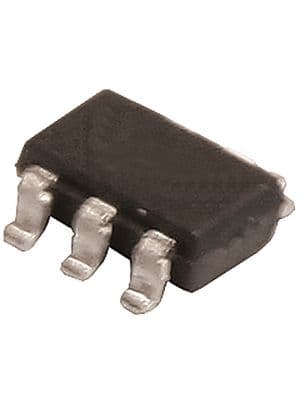

Product Images
