Octal channel 12-bit analog-to-digital converter (ADC) with a 100MS/s conversion rate. Features differential inputs, LVDS serial interface, and 70.6dB signal-to-noise ratio. Operates from a 1.7V to 1.9V supply voltage, with low power consumption of 640mW. Integral nonlinearity is 1.1LSB and differential nonlinearity is 0.62LSB. Packaged in an 80-HTQFP, this lead-free and RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageHTQFP
Power640mW
Quick Jump:
Technical Specifications
Texas Instruments ADS5295PFPT technical specifications.
General
| Package/Case | HTQFP |
| Conversion Rate | 100MS/s |
| Differential Nonlinearity | 0.62LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 1.1LSB |
| Interface | LVDS, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 1.9V |
| Min Supply Voltage (DC) | 1.7V |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Number of A/D Converters | 8 |
| Number of Analog Inputs | 8 |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Number of Inputs | 8 |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Consumption | 640mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 100000000S/s |
| Signal to Noise Ratio (SNR) | 70.6dB |
| Spurious-free dynamic range (SFDR) | 86dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS5295PFPT Datasheet
Download the complete datasheet for Texas Instruments ADS5295PFPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

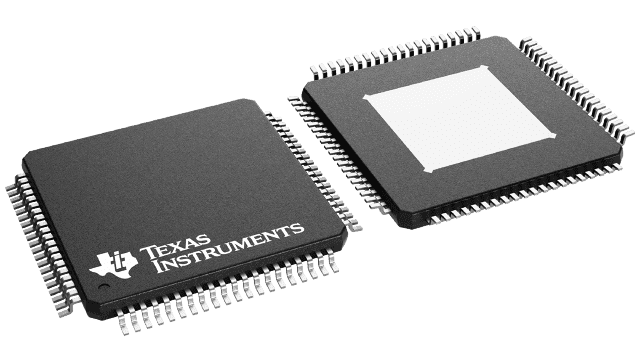

Product Images
