12-bit, 8-channel analog-to-digital converter (ADC) featuring a parallel interface and a 500 kS/s conversion rate. Offers 2 LSB integral nonlinearity and 1 LSB differential nonlinearity for precise data acquisition. Operates from a single 5V supply with a maximum power dissipation of 17.5mW. Packaged in a 32-TQFP with gold contact plating, this RoHS compliant component is supplied on tape and reel.
PackageTQFP
Current2.6mA
PolarityUnipolar
Power13mW
Quick Jump:
Technical Specifications
Texas Instruments ADS7852Y/2K technical specifications.
General
Package/Case
TQFP
Contact Plating
Gold
Conversion Rate
500KS/s
Differential Nonlinearity
1LSB
Full Scale Error
40LSB
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
17.5mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
12
Number of Channels
8
Number of Converters
1
Number of Elements
1
Number of Inputs
8
Operating Supply Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
13mW
Power Dissipation
13mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
500KS/s
Signal to Noise Ratio (SNR)
72dB
Spurious-free dynamic range (SFDR)
74dB
Supply Current
2.6mA
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS7852Y/2K Datasheet
Download the complete datasheet for Texas Instruments ADS7852Y/2K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

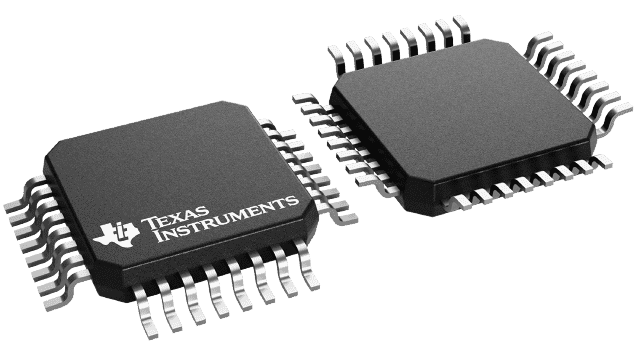

Product Images
