12-bit, 6-channel simultaneous sampling analog-to-digital converter (ADC) with a 500KS/s conversion rate. Features differential input type, parallel interface, and bipolar polarity. Offers 71dB SNR and 78dB SFDR with 2LSB integral nonlinearity. Operates from a 4.75V to 5.25V supply voltage, with a maximum power dissipation of 50mW. Packaged in a 48-TQFP, this RoHS compliant component operates within a -40°C to 85°C temperature range.
PackageTQFP
PolarityBipolar
Power52.5mW
Quick Jump:
Technical Specifications
Texas Instruments ADS7864Y/250 technical specifications.
General
Package/Case
TQFP
Conversion Rate
500KS/s
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
2LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
50mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
2
Number of Analog Inputs
6
Number of Bits
12
Number of Channels
6
Number of Converters
2
Number of Elements
2
Number of Inputs
6
Operating Supply Voltage
5V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Bipolar
Power Consumption
52.5mW
Power Dissipation
50mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
500KS/s
Signal to Noise Ratio (SNR)
71dB
Spurious-free dynamic range (SFDR)
78dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS7864Y/250 Datasheet
Download the complete datasheet for Texas Instruments ADS7864Y/250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

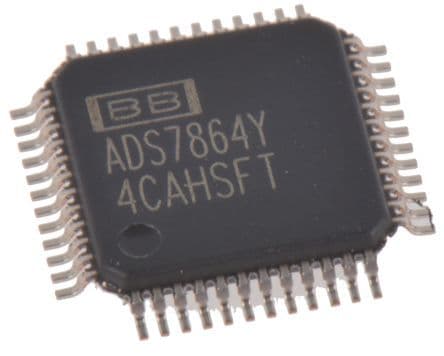

Product Images
