Texas Instruments
AFE5809ZCF
Fully-Integrated, 8-Ch Ultrasound Analog Front End w/ Passive CW Mixer and Digital I/Q Demodulation 135-NFBGA 0 to 85
PackageLBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments AFE5809ZCF technical specifications.
General
Package/Case
LBGA
Contact Plating
Copper, Tin, Silver
Interface
LVDS
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Mount
Surface Mount
Number of A/D Converters
8
Number of Bits
14
Number of Channels
8
Number of Inputs
8
Operating Supply Current
375mA
Package Quantity
160
Packaging
Tray
Radiation Hardening
No
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
65000KS/s
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Texas Instruments AFE5809ZCF Datasheet
Download the complete datasheet for Texas Instruments AFE5809ZCF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

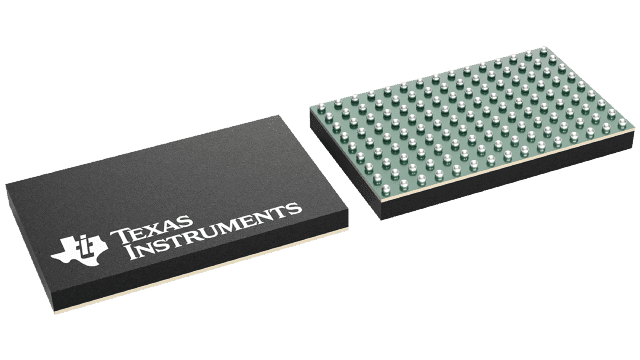

Product Images
