Technical Specifications
Texas Instruments AM26C32CNSR technical specifications.
General
Package/Case
SOP
Contact Plating
Gold
Data Rate
10Mbps
ESD Protection
No
Lead Free
Lead Free
Logic Function
Receiver
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
15mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Receivers
4
Operating Supply Current
15mA
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
15mA
Weight
0.007079oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments AM26C32CNSR Datasheet
Download the complete datasheet for Texas Instruments AM26C32CNSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

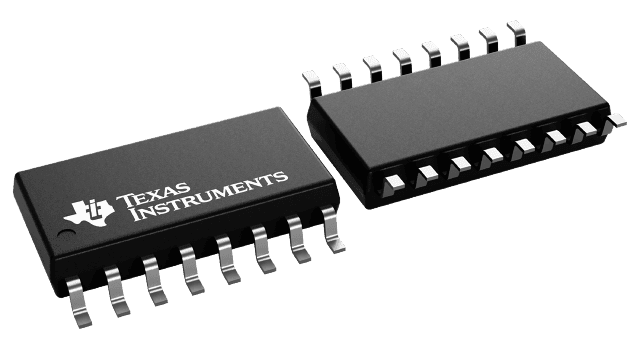

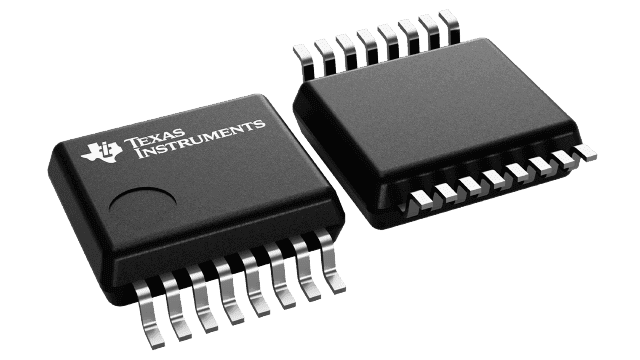

Product Images
