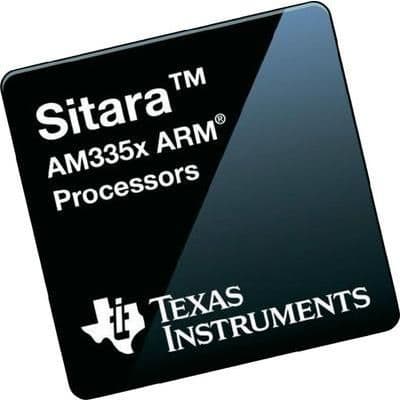

720MHz ARM Cortex-A8 RISC microprocessor, featuring a 32-bit data bus and a single core. This surface mount LFBGA package offers 64KB RAM, I2C, SPI, CAN, and UART interfaces, operating from a 1.15V to 1.2V supply. Designed for a temperature range of -40°C to 90°C, it boasts lead-free and RoHS compliance.
Frequency720MHz
PackageLFBGA
Voltage1.15V
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments AM3359ZCZD72 technical specifications.
General
Package/Case
LFBGA
Contact Plating
Copper, Tin, Silver
Core Architecture
ARM
Data Bus Width
32b
Frequency
720MHz
Height
0.96mm
Interface
I2C, SPI, CAN, UART
Lead Free
Lead Free
Length
15.1mm
Max Frequency
720MHz
Max Operating Temperature
90°C
Memory Size
64KB
Min Operating Temperature
-40°C
Max Supply Voltage
1.2V
Min Supply Voltage
1.21V
Mount
Surface Mount
Number of Cores
1
Package Quantity
1
Packaging
Tray
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Sitara™
Voltage
1.15V
Width
15.1mm
Compliance
RoHS
Compliant
