16-bit, 40 kS/s isolated delta-sigma modulator featuring a 2nd-order architecture. This analog IC offers a 1-channel, differential input with bipolar polarity and a serial interface. Operating from a 4.5V to 5.5V supply, it achieves 85dB SNR and 1LSB DNL. Packaged in an 8-SOP with gold contact plating, it supports surface mounting and operates between -40°C and 105°C.
PackageSOP
MountingSurface Mount
PolarityBipolar
Power80mW
Quick Jump:
Technical Specifications
Texas Instruments AMC1203BDUBR technical specifications.
General
Package/Case
SOP
Contact Plating
Gold
Conversion Rate
40KS/s
Differential Nonlinearity
1LSB
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
6LSB
Interface
Serial
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
110mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
350
Packaging
Tape and Reel
Polarity
Bipolar
Power Consumption
80mW
Power Dissipation
80mW
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
40KS/s
Signal to Noise Ratio (SNR)
85dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments AMC1203BDUBR Datasheet
Download the complete datasheet for Texas Instruments AMC1203BDUBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

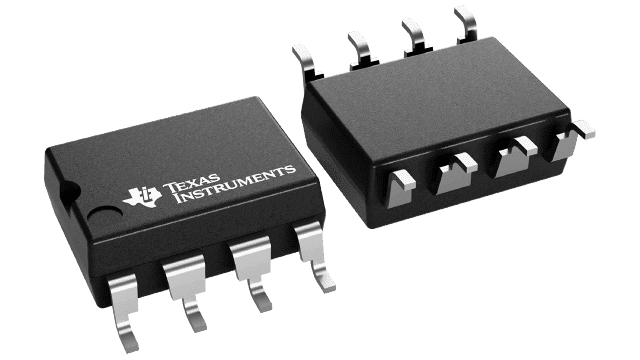

Product Images
