Multichannel Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) IC with 12-bit resolution. Features 8 ADC channels and 8 DAC channels, supporting a 200KS/s conversion rate via SPI interface. Operates within a 2.7V to 5.5V supply voltage range and a -40°C to 85°C temperature range. Includes 6 GPIO pins and is RoHS compliant, packaged in a 40-WQFN with gold contact plating.
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments AMC7823IRTAR technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Conversion Rate
200KS/s
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of A/D Converters
1
Number of Bits
12
Number of Channels
8
Number of D/A Converters
8
Number of DAC Channels
8
Number of GPIO
6
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
200KS/s
Series
AMC7823
Supply Type
Analog, Digital
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Texas Instruments AMC7823IRTAR Datasheet
Download the complete datasheet for Texas Instruments AMC7823IRTAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

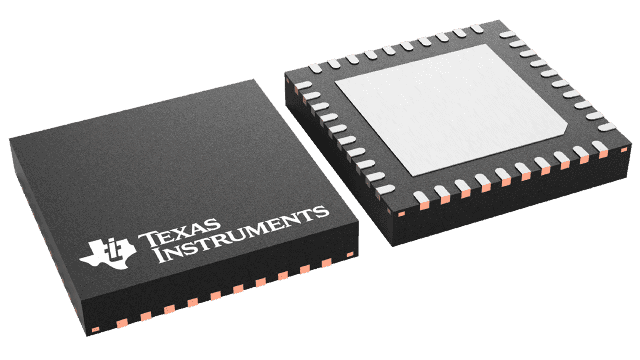

Product Images
