Texas Instruments
BQ24172RGYR
Multi-cell, 4A, stand-alone buck Li-ion and Li-polymerymer battery charger with integrated MOSFETs 24-VQFN -40 to 85
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments BQ24172RGYR technical specifications.
General
Battery Pack Voltage
2.1V
Package/Case
VQFN
Contact Plating
Gold
Fault Protection
Over Current, Over Voltage, Over Temperature
Lead Free
Lead Free
Max Charge Current
4A
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
17V
Min Supply Voltage
4.5V
Number of Cells
123
Operating Supply Current
15mA
Output Current
4A
Output Voltage
13.5V
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ24172RGYR Datasheet
Download the complete datasheet for Texas Instruments BQ24172RGYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

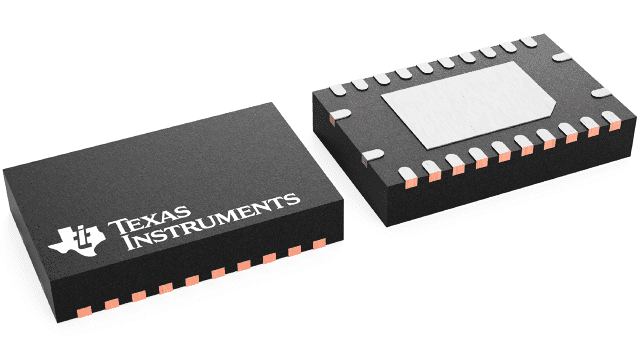

Product Images
