The BQ27532YZFT-G1 is a power management IC from Texas Instruments with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It operates on a supply voltage between 2.8V and 4.5V, consuming a maximum supply current of 118uA. The IC is available in a VFBGA package and is compliant with RoHS regulations. It is not Reach SVHC compliant and is packaged in tape and reel with 250 units per package.
Storage14500mAh
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ27532YZFT-G1 technical specifications.
General
| Battery Chemistry | LITHIUM-ION |
| Capacity | 14500mAh |
| Contact Plating | Copper, Tin, Silver |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 4.5V |
| Min Supply Voltage | 2.8V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Operating Supply Current | 118uA |
| Output Voltage | 2.6V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Impedance Track™ |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ27532YZFT-G1 Datasheet
Download the complete datasheet for Texas Instruments BQ27532YZFT-G1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

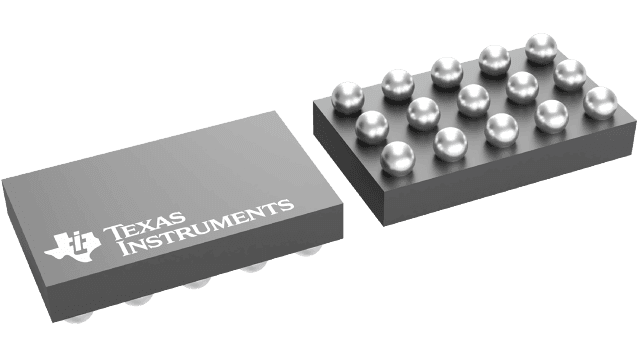

Product Images
