Texas Instruments
BQ30Z554DBT-R1
2 series, 3 series, and 4 series Li-ion battery pack manager 30-TSSOP -40 to 85
PackageTSSOP
Storage32000mAh
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ30Z554DBT-R1 technical specifications.
General
| Capacity | 32000mAh |
| Package/Case | TSSOP |
| Contact Plating | Gold |
| Fault Protection | Over Current, Over Temperature, Short Circuit, Over/Under Voltage |
| Interface | SMBus |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 25V |
| Mount | Surface Mount |
| Output Current | 2mA |
| Output Voltage | 3.3V |
| Package Quantity | 60 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Impedance Track™ |
| Weight | 0.003439oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ30Z554DBT-R1 Datasheet
Download the complete datasheet for Texas Instruments BQ30Z554DBT-R1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

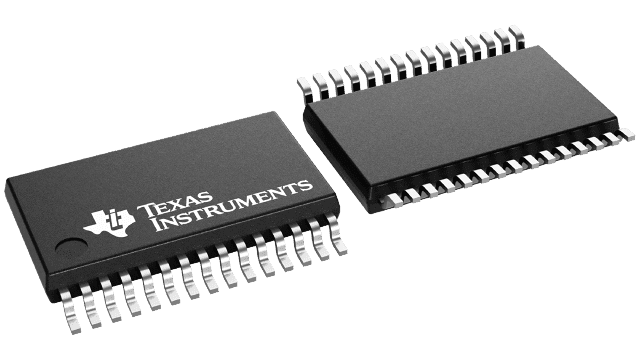

Product Images
