Texas Instruments
BQ7694006DBT
9 to 15-series cell li-ion and li-phosphate battery monitor (bq76940 family) 44-TSSOP -40 to 85
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ7694006DBT technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Fault Protection
Over Current, Short Circuit, Over/Under Voltage
Height
1.05mm
Interface
I2C
Lead Free
Lead Free
Length
7.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
3.6V
Min Output Voltage
0V
Max Supply Voltage
25V
Min Supply Voltage
6V
Mount
Surface Mount
Operating Supply Current
130uA
Output Voltage
3.6V
Package Quantity
40
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.004914oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ7694006DBT Datasheet
Download the complete datasheet for Texas Instruments BQ7694006DBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

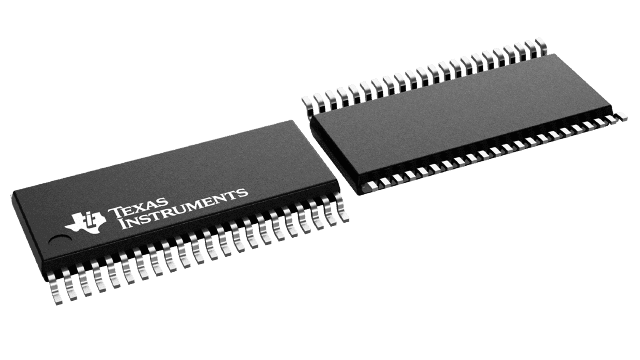

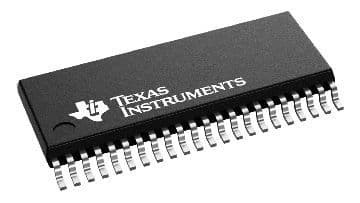

Product Images
