Surface mount RF transceiver supporting ASK, FSK, GFSK, OOK, and MSK modulation. Features a 928MHz operating frequency with a data rate up to 600Kbps. Offers a sensitivity of -116dBm and a maximum output power of 12dBm. Operates with supply voltages from 1.8V to 3.6V, drawing 17.1mA in receive mode and 34.2mA in transmit mode. Integrated SPI interface for communication.
Frequency928MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC1101RGP technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Current - Receiving
17.1mA
Current - Transmitting
34.2mA
Data Rate
600Kbps
Density
0B
Depth
4.15mm
Frequency
928MHz
Height
0.95mm
Interface
SPI
Lead Free
Lead Free
Length
4.15mm
Max Frequency
928MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Receivers
1
Number of Transmitters
1
Output Power (dBm)
12dBm
Package Quantity
92
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Sensitivity
-116dBm
Weight
0.002469oz
Width
4.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC1101RGP Datasheet
Download the complete datasheet for Texas Instruments CC1101RGP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

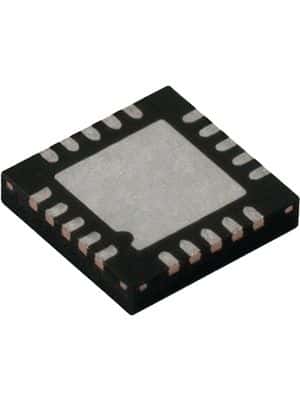

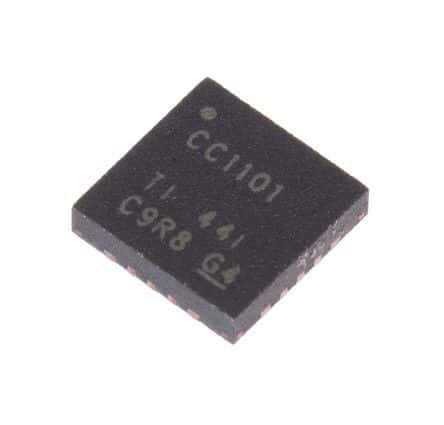

Product Images
