RF and Wireless IC for cellular applications, featuring a 300MHz to 928MHz frequency range and a maximum data rate of 600Kbps. This surface mount component offers a sensitivity of -116dBm and a maximum output power of 10dBm. Operating with a supply voltage between 1.8V and 3.6V, it utilizes an SPI interface and consumes 17.1mA during receiving and 34.2mA during transmitting. The VQFN package measures 4mm x 4mm x 0.85mm and operates within a temperature range of -40°C to 85°C.
Frequency928MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC1101RTK technical specifications.
General
Package/Case
VQFN
Current - Receiving
17.1mA
Current - Transmitting
34.2mA
Data Rate
600Kbps
Depth
4mm
Frequency
928MHz
Height
0.85mm
Interface
SPI, 4-WIRE
Lead Free
Lead Free
Length
4mm
Max Frequency
928MHz
Min Frequency
300MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Nominal Supply Current
200nA
Output Power (dBm)
10dBm
Package Quantity
92
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-116dBm
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC1101RTK Datasheet
Download the complete datasheet for Texas Instruments CC1101RTK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

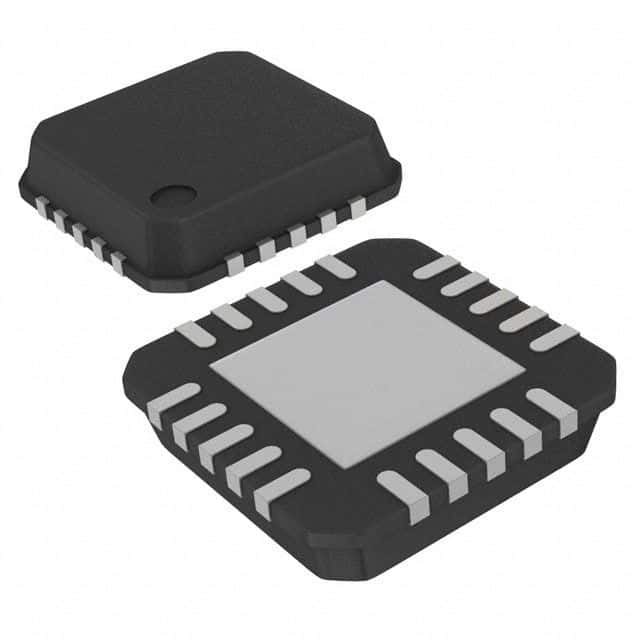

Product Images
