Sub-1 GHz wireless microcontroller featuring an 8051 core architecture. This surface mount device offers up to 32 kB Flash memory and 1KB RAM, operating across multiple frequency bands including 915MHz. Key interfaces include USB, I2S, and UART, with 21 GPIO pins available. Operating from 2V to 3.6V, it supports a data rate of 500Kbps and an output power of 10dBm, with a sensitivity of -110dBm. Packaged in a 36-VQFN with gold contact plating, it operates from -40°C to 85°C.
Frequency915MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC1110F8RHHT technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Core Architecture | 8051 |
| Current - Receiving | 16.2mA |
| Current - Transmitting | 19mA |
| Data Rate | 500Kbps |
| Frequency | 915MHz |
| Height | 0.7mm |
| Interface | USB, I2S, UART |
| Lead Free | Contains Lead |
| Length | 6.1mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of GPIO | 21 |
| Number of I/Os | 21 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Operating Frequency | 300 MHz to 348 MHz, 391 MHz to 464 MHz, 782 MHz to 928 MHz |
| Output Power (dBm) | 10dBm |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Sensitivity | -110dBm |
| Series | CC1110F8 |
| Technology | CMOS |
| Weight | 0.003728oz |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CC1110F8RHHT Datasheet
Download the complete datasheet for Texas Instruments CC1110F8RHHT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

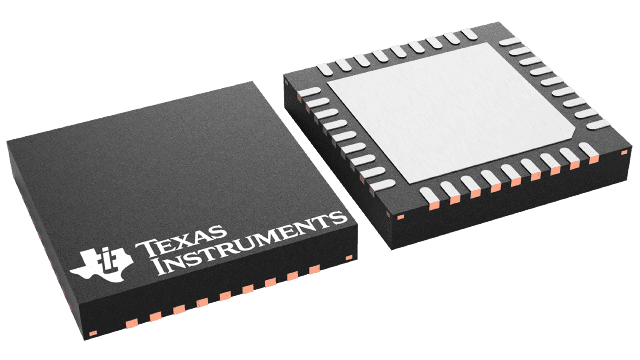

Product Images
