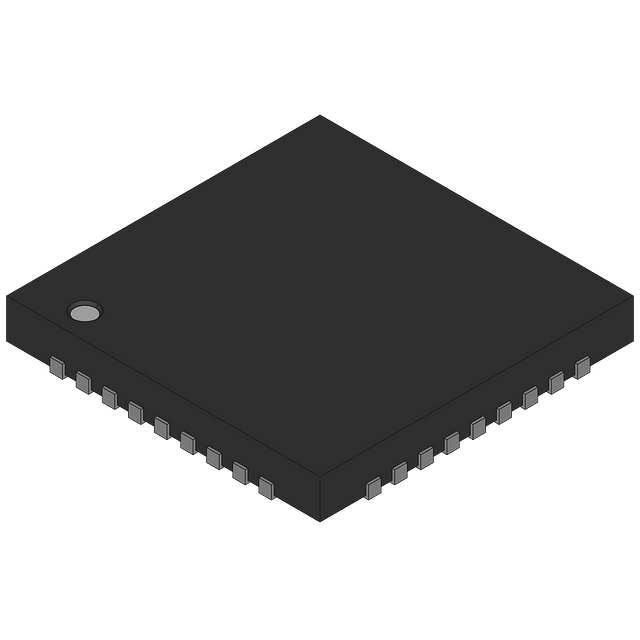

Sub-1 GHz wireless microcontroller featuring an 8051 core architecture and 16KB of FLASH memory. This peripheral IC supports data rates up to 500Kbps and offers an output power of 10dBm with a sensitivity of -110dBm. Operating frequencies span 300 MHz to 928 MHz, with specific support for 915MHz. It includes USB, I2S, and USART interfaces, 21 GPIO pins, and 7 ADC channels. Packaged in a 36-VQFN (6x6mm) with matte tin contact plating, this surface mount component operates from -40°C to 85°C with a supply voltage range of 3V to 3.6V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments CC1111F16RSP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Contact Plating | Copper, Tin, Matte |
| Core Architecture | 8051 |
| Current - Receiving | 16.2mA |
| Current - Transmitting | 19mA |
| Data Bus Width | 16b |
| Data Rate | 500Kbps |
| Frequency | 915MHz |
| Height | 0.9mm |
| Interface | USB, I2S, USART |
| Lead Free | Contains Lead |
| Length | 6mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 300nA |
| Number of ADC Channels | 7 |
| Number of GPIO | 21 |
| Number of I/Os | 21 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 1 |
| Operating Frequency | 300 MHz, 391 MHz, 782 MHz to 348 MHz, 464 MHz, 928 MHz |
| Output Power (dBm) | 10dBm |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 2KB |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Sensitivity | -110dBm |
| Series | CC1111F16 |
| Technology | CMOS |
| Width | 6mm |
| RoHS | Compliant |
