System on Chip (SoC) featuring an 8051 CMOS core, this device operates across a wide frequency range from 300 MHz to 928 MHz. It boasts a 4KB RAM size and supports data rates up to 500Kbps, with a transmit output power of 10dBm and a sensitivity of -112dBm. Connectivity is provided via USB and USART interfaces. The component is housed in a 36-pin VQFN EP package for surface mounting, with a supply voltage range of 3V to 3.6V and an operating temperature range of -40°C to 85°C.
Frequency928MHz
PackageVQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC1111F32RSPR technical specifications.
General
Package/Case
VQFN EP
Contact Plating
Copper, Tin, Matte
Current - Receiving
21.5mA
Current - Transmitting
36.2mA
Data Rate
500Kbps
Frequency
928MHz
Interface
USB, USART
Lead Free
Contains Lead
Max Frequency
928MHz
Min Frequency
300MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
4KB
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
300nA
Number of GPIO
21
Number of UART Channels
1
Operating Frequency
300 MHz, 391 MHz, 782 MHz to 348 MHz, 464 MHz, 928 MHz
Operating Supply Voltage
3.3V
Output Power (dBm)
10dBm
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-112dBm
Technology
CMOS
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC1111F32RSPR Datasheet
Download the complete datasheet for Texas Instruments CC1111F32RSPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

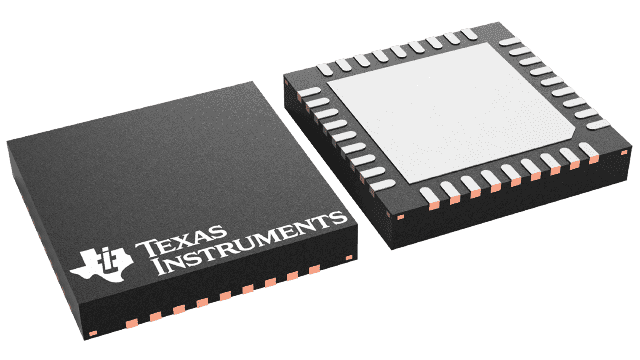

Product Images
