2.4 GHz IEEE 802.15.4 compliant and ZigBee ready RF transceiver for wireless communication. Features a 250Kbps data rate, SPI interface, and 0dBm output power. Operates across a 2.4GHz to 2.4835GHz frequency range with a sensitivity of -95dBm. Designed for surface mounting in a QFN package with tin, matte contact plating, and a supply voltage range of 2.1V to 3.6V. Suitable for operation between -40°C and 85°C.
Frequency2.4GHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2420-RTB1 technical specifications.
General
Package/Case
QFN
Contact Plating
Tin, Matte
Current - Receiving
18.8mA
Current - Transmitting
17.4mA
Data Rate
250Kbps
Depth
7mm
Frequency
2.4GHz
Interface
SPI
Lead Free
Contains Lead
Length
7mm
Max Frequency
2.4835GHz
Min Frequency
2.4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.1V
Mount
Surface Mount
Output Power (dBm)
0dBm
Package Quantity
43
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-95dBm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2420-RTB1 Datasheet
Download the complete datasheet for Texas Instruments CC2420-RTB1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

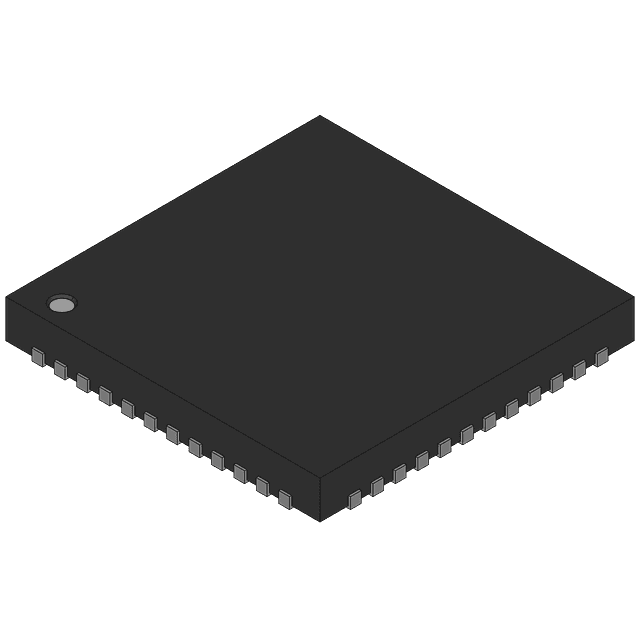

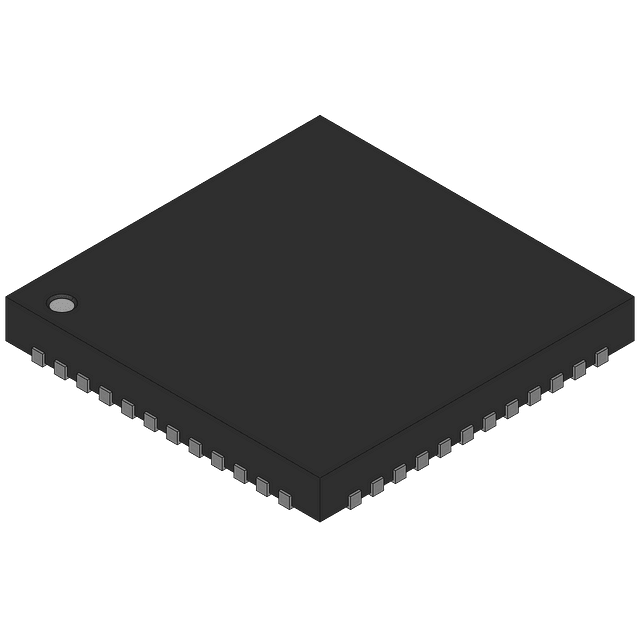

Product Images
