2.4 GHz radio transceiver IC featuring an 8051 core architecture and 2KB RAM. This surface mount component offers a data rate of 12Mbps, operating frequency range of 2.4 GHz to 2.4835 GHz, and sensitivity of -103dBm. Integrated interfaces include SPI, USB, USART, and 3-WIRE, with 19 GPIO pins available. Operating supply voltage is 3.3V, with a range of 3V to 3.6V, and it supports a maximum operating temperature of 150°C.
Frequency2.4GHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2511F16RSP technical specifications.
General
Package/Case
QFN
Contact Plating
Copper, Tin, Matte
Core Architecture
8051
Current - Receiving
22.9mA
Current - Transmitting
26mA
Data Bus Width
8b
Data Rate
12Mbps
Frequency
2.4GHz
Height
1mm
Interface
SPI, USB, USART, 3-WIRE
Lead Free
Lead Free
Length
6.1mm
Max Frequency
2.4835GHz
Min Frequency
2.4GHz
Max Operating Temperature
150°C
Max Supply Voltage
3.6V
Memory Size
2KB
Memory Type
Non-Volatile,
Min Operating Temperature
-50°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of GPIO
19
Number of I/Os
19
Number of Timers/Counters
3
Operating Frequency
2.4 GHz to 2.4835 GHz
Operating Supply Voltage
3.3V
Output Power (dBm)
1dBm
Package Quantity
490
Packaging
Tray
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-103dBm
Series
CC2511
Technology
CMOS
Weight
0.003266oz
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2511F16RSP Datasheet
Download the complete datasheet for Texas Instruments CC2511F16RSP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

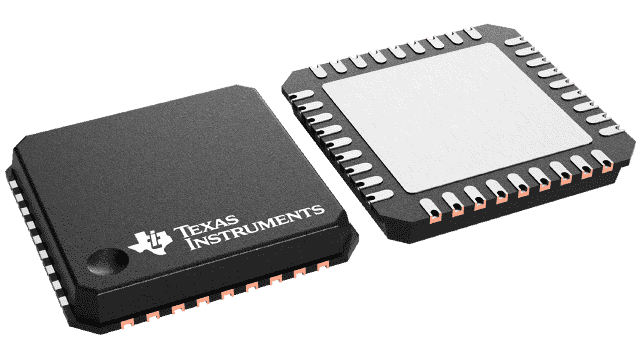

Product Images
