802.15.4/ZigBee/RF4CE System-on-Chip (SoC) operating at 2.4GHz with a data rate of 250Kbps. Features 256KB FLASH memory, 8KB RAM, and an 8051 core architecture. Offers 21 GPIOs, SPI, USART, UART, and 2-Wire interfaces. Operates from 2V to 3.6V with a receiving current of 24.3mA and transmitting current of 33.5mA. Packaged in a 40-pin VQFN with gold contact plating, suitable for surface mounting.
Frequency2.4GHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CC2530F256RHAR technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Core Architecture
8051
Current - Receiving
24.3mA
Current - Transmitting
33.5mA
Data Bus Width
8b
Data Rate
250Kbps
Frequency
2.4GHz
Interface
SPI, USART, UART, 2-Wire
Lead Free
Lead Free
Max Frequency
2.507GHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Frequency
2.394GHz
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
8
Number of GPIO
21
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
4
Number of UART Channels
1
Operating Frequency
2.4 GHz
Output Power (dBm)
4.5dBm
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-97dBm
Watchdog Timer
Yes
Weight
0.002822oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2530F256RHAR Datasheet
Download the complete datasheet for Texas Instruments CC2530F256RHAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

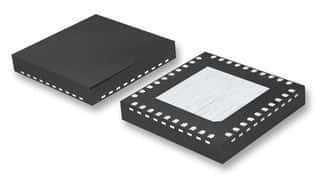

Product Images
