Bluetooth v4.0 (BLE) SMART System-on-Chip (SoC) module with 1Mbps data rate, operating at 2.4GHz. Features an 8051 core architecture, 8KB RAM, and 21 GPIO pins. Offers SPI, USB, and USART interfaces, with receiving current of 22.1mA and transmitting current of 31.6mA. Packaged in a 40-pin VQFN EP with gold contact plating, this RoHS and REACH SVHC compliant component operates from -40°C to 85°C.
Frequency2.4GHz
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments CC2540F128RHAR technical specifications.
General
Package/Case
VQFN EP
Contact Plating
Gold
Core Architecture
8051
Current - Receiving
22.1mA
Current - Transmitting
31.6mA
Data Bus Width
8b
Data Rate
1Mbps
Frequency
2.4GHz
Interface
SPI, USB, USART
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
400uA
Max Supply Voltage
3.6V
Memory Size
8KB
Min Supply Voltage
2V
Number of GPIO
21
Number of I/Os
21
Number of Timers/Counters
3
Number of UART Channels
1
Operating Frequency
2.4 GHz
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Sensitivity
-93dBm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC2540F128RHAR Datasheet
Download the complete datasheet for Texas Instruments CC2540F128RHAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

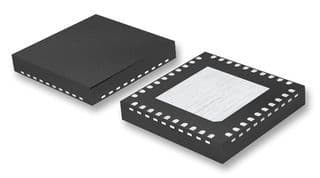

Product Images
